  • Description

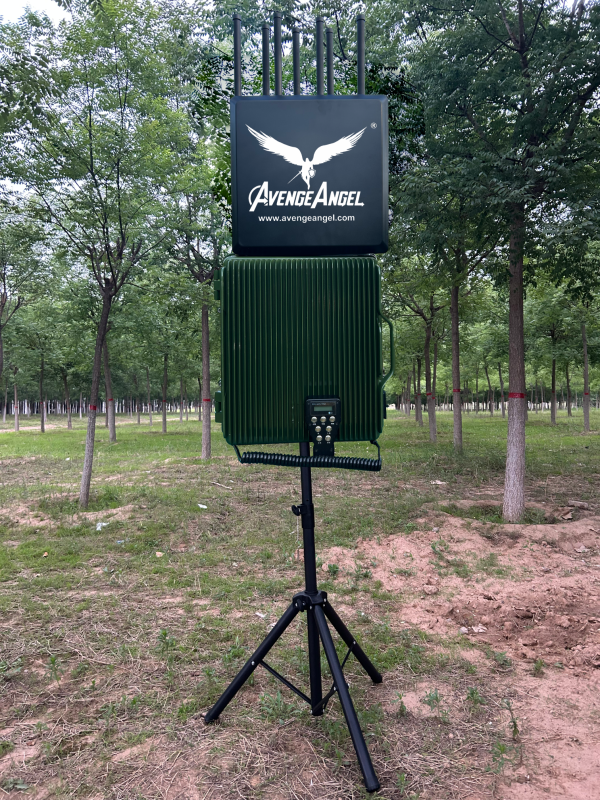

AvengeAngel Pineapple
High Power Omni-directional 7-band drone jammer




 Caution: The link antenna must be installed before the power can be turned on.


I. Equipment Introduction
Electromagnetic suppression technology is a mainstream civil countermeasure and the most important component of low altitude defense systems. It needs high reliability in work. The base-station UAV countermeasures equipment is connected with the monitoring and management platform software. Depending on the needs, hierarchical controls can be carried out to repel intruding UAVs and force them to land. The countermeasure equipment is silent at ordinary times. When the target area is intruded by a UAV, the information will be sent back to the platform's command center for identification, and then the interceptor equipment is activated remotely to form an electronic fence in the air to clear the air.
As the first manufacturer to propose the fixed base station type countermeasure technology, the equipment adopts the field rainproof workstation shell, which has excellent waterproof and heat dissipation performance, so that it can meet the needs of use in harsh environment.
The system uses the central platform control counter intercept equipment as the core to achieve the goal of effective jamming and driving away targets within a radius of 1-3 km. According to the precise coordinates (azimuth, distance, altitude) of the target input by the detection equipment, the target is confirmed by the target discovery software, and then the manual intervention and unattended mode can be adopted.
2. Functional Features

Modular design, rich interface, possibility to use independently or in the form of a network with multiple sets;
  1. The machine has interfaces for detecting devices, allowing expansion and linkage;
  2. Based on application scenarios and defense levels, the device can be used independently 7*24 with high reliability.
  3. According to the needs, the multi-band omnidirectional beam jammer can realize the compound jamming and suppression of positioning signal (GPS, GNSS, BDS, Beidou, etc.), picture transmission signal and remote control signal (433MHz, 750MHz, 900MHz, 1GHz1.2GHz, 2.4GHz,5.8GHz).
  4. The product is equipped with a short-size dual-polarization high-gain omnidirectional antenna, which solves the technical difficulties of low frequency and long size, ensures the output of power signal, realizes the transmission of low power, long distance and low radiation, and is environmentally friendly.
Covering 360 degrees, and effectively defending from multiple targets.

The mode of driving away and forced return:
 433M+750M+900M+1G+2.4G+5.8G
433M+750M+900M+1G+2.4G+5.8G
The mode of forced landing:
433M+750M+900M+1G+1.2G+2.4G+5.8G
3. Equipment Parameters
The system uses a technology whose purpose was changed from military to civilian to achieve a low-cost, widely deployable fully automatic UAV defense equipment

Base station UAV defense Product nameAvengeAngel Pineapple drone jammer
Countermeasure Distance Radius of 1-3Km, customized according to customers’ needs

Operation Frequency
433M750M900M1G1.2G2.4G5.8G, etc., optional according to the needs
Direction of the Antenna Directional antenna, omnidirectional antenna is optional
Form of Power Supply AC 22V
Power Consumption 400W
Measurements
450mm X 368mm X 178mm, excluding the antenna
Weight
20Kg
Operation Temperature -20℃~+55℃ (outdoor), overheating protection 75℃, resume work
Storage Temperature -40℃~+80℃ (outdoor), automatic heating function

Mechanical environment

After 500Km transportation vibration environment; The device can work normally and the vibration resistance meets the requirements of GB/T14587.10-2005
Protection Level IP65
  Rain proof, wind proof, sand proof, moisture proof, salt spray corrosion proof, fog proof, lightning proof and other functions




Power Table

7  channels

Frequency band

Power

Function

Countermeasure distance

Average output power

Channel output power

F1
700~830MHz
750M
80W


750M UAV image transmission/partial remote control signal Around 1-3 kilometers
51dbm

50dbm/30KHz(min)

F2
2380-2510MHz
2.4G
80W 2.4G UAV remote control signal Around 1-4 kilometers 51dbm 50dbm/30KHz(min

F3
5700-5880MHz
5.8G
50W 5.8G UAV image transmission/partial remote control signal Around 1-3 kilometers 47dbm 50dbm/30KHz(min

F4
830-960MHz
900M
80W 900M UAV image transmission/partial remote control signal Around 1-3 kilometers 47dbm 50dbm/30KHz(min

F5
960-1050MHz
1G
80W 1G UAV image transmission/partial remote control signal Around 1-3 kilometers 47dbm 50dbm/30KHz(min

F6
1160-1280MHz
1.2G
80W 1.2G GPS drone navigation signal Around 1-3 kilometers 47dbm 50dbm/30KHz(min

F7
420~450MHz
433M
80W 433M Remote control signal Around 1-3 kilometers 47dbm 50dbm/30KHz(min

Caution: The link antenna must be installed before the power can be turned on.
